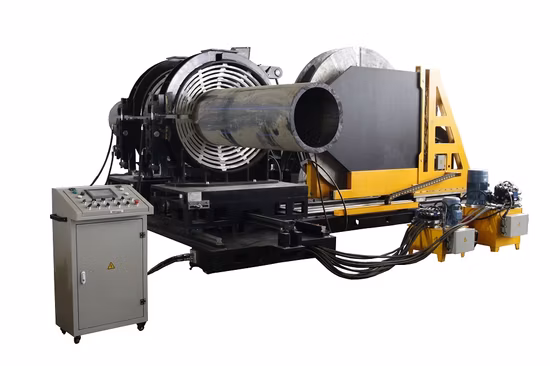

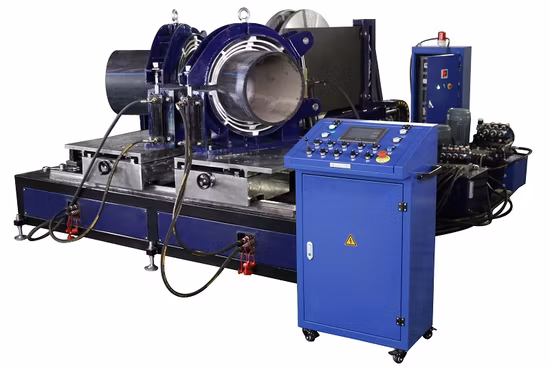

315mm-630mm HDPE/PP/PE Pipes Muti-Angle Welding Machine
Description
Basic Info
| Model NO. | SDF630 |
| Welding Range | 630mm |
| Cooling Way | Air Cooling |
| Control | Semi-Automatic |
| Frequency Range | Intermediate Frequency |
| Electric Current | AC |
| Type | Workshop Fitting Welding Machine |
| Welding Range(mm) | 315 355 400 450 500 560 630 |
| Working Voltage | 380V 50Hz |
| Total Power | 29.0kw |
| Volume | 22.7cbm |
| Pressure Adjustable Ranges | 0-16MPa |
| Heating Plate Power | 22.0kw |
| Planning Tool Power | 4.0kw |
| Warranty | 1 Year |
| Certificate | Ce ISO SGS |
| Wooden Box | 4 Wooden Boxes |
| Weight | 3510kg |
| Transport Package | Wooden Box |
| Specification | 22.7CBM |
| Trademark | SUDA |
| Origin | China(Mainland) |
| HS Code | 85152900 |
| Production Capacity | 100sets/Months |
Product Description
Our Advantages
1.The main accessories of the welding machine are made by fully automatic aluminum casting. It is lighter, more solid and smooth than the machine made by sand-casting and steel-form technology.2.Using static plastic-spraying process, colorful,smooth surface and not easy to be damaged.3.The main accessories of the hydraulic station are imported overseas, which could reduces the maintence and extends the life of hydraulic station.4.The package we use is fumigated cartons which has nice appearance and solid structure for convenient.
315mm-630mm HDPE/PP/PE Pipes Muti-Angle Welding Machine
Description==>
1.Suitable for fabricating Elbow,Teem,Cross,Y shape(45 and60) fittings of PE PP PVDF in workshop2.Integrated structure,nothing remains but to choose the different special clamps while fabricating different fittings.3.Consist of Basic Frame,Hydraulic Unit,Trimmer,Heater and Electric Control Unit.4.Removable PTFE coated heating plate with separate temperature control system.5.Electric unit provides welding machine with compressing power.6.Hydraulic unit provides welding machine with compressing amchine7.Low starting pressure ensures reliable welding quality f small pipes.8.Including the Temperature Controller and Timer,easy to know the time and temperature.
Specification==>
| Model | SDF630 | |
| Welding Range(mm) | 315 355 400 450 500 560 630 | |
| Application | 0-90° Elbow,Tee,Cross,45° and 60° wyes(Optional parts should be used) | |
| Heating Plate Max. Temp | 270ºC | |
| Temp. Deviation in Surface | ≤±7°c | |
| Working Voltage | 380V 50HZ | |
| Heating Plate Power | 22.0KW | |
| Planning Tool Power | 4.0KW | |
| Hydraulic Unit Power | 3.0KW | |
| Total Power | 29.0KW | |
| Pressure Adjustable Ranges | 0-16Mpa | |
| Weight | 3510KG(Not including Optional Part) | |
| Packing | Wooden Box | 4 Wooden Boxes |
| Volume | 22.7CBM | |
Packaging Photos==>
Exhibition==>
Our Service==>
1.About sample: If you have any need, don't hesitate to contact us, we will promptly provide samples to you.
2.About after-sales service : Our products have one year warranty period , so if it has quality problems within one year , you can find our warranty .3.We can customize product according to the requirements of customers.4.Your inquiry related to our product or price will be replied in 24 hours.5.Protection of your sales area, ideas of design and all your private information.
FAQ==>
1.why choose our factory ?Our company has advanced production equipment and strong technology. The producing process is under strict management in quality. Our products are sold around the world and highly thought of since excellent quality and perfect service at home and abroad2.The advantage for product?High efficiency , energy saving and good quality.3.The advantage for us ?Reasonable price and best services , advanced equipment and strong technology.4.How to order?Do not hesitate to contact by online or Email as soon as possible once you are interested in our products. The specific quotation will be offered basing the request dimension and quantity5. What about the quality?All products according to ISO and National highest standard, also we can offer CE, certificate if necessary. The machine have one year warranty.6. What payment is available? T/T, L/C,Westion Union
